Canyon 306 Center Console

Double click any picture for image gallery

Main Specifications:

Beam Amidships 10'7" (3.23 m)

Center Line Length w/o Engines 30'6" (9.30 m)

Bridge Clearance 9'4" (2.84 m)

Cockpit Depth 27" (0.69 m)

Hull Draft 21" (0.53 m)

Transom Deadrise 19.5degrees (SeaV2® progression)

Maximum HP 700 (522 kW)

Fuel Capacity - Standard 290 gal. (1098 l)

Weight w/o Engines 6950 lb. (3152 kg)

CANYON 306 VIDEO  On the Water 'Click' on the

picture above to view the video

CANYON 306 VIDEO Walkthrough

Click on the picture above to View

Standard Features

Safety

2 automatic bilge pumps (total 2600 GPH) (9842 LPH)

Basic flotation
Bow rail - low profile 316 grade stainless steel Captain Grady - digital boat systems and

operations guide for iPad and iPhone Cockpit toe rails
Composite stringer system & transom - water

impervious
Console grab rail
Fire extinguisher holder
Nonskid fiberglass liner
Self-bailing cockpit w/cockpit drains (4) Stainless steel through-hull fittings

Cockpit & Deck

100% hand laid hull & deck
Anchor windlass w/remote switches at helm &

windlass
Battery select switch
Cleats - flush mount (pop up)
Cockpit bolsters
Cockpit freshwater shower (recessed) Cockpit lights - blue LED
Cockpit step - port
Cutting board
Deck hardware - 316 grade stainless steel

through-bolted
Drink holders - stainless steel (7)
Engine flush system w/hose attachment aft (one

per engine)
Fish box - 150-qt. (142 l) port & starboard

insulated fish boxes w/ob drain
Fish box - 304-qt. (287.7 l) aft insulated fish box

w/light & ob drain Forward bolsters

Fuel capacity - 290-gallon (1098 l) tank Hydraulic trim tabs w/indicator & retractor Integrated outboard mounting system w/swim

platform & ladder
International lighting
Rod holders - cockpit (6), bow (2)
Rod storage - lockable horizontal storage for 6

rods
Rubrail - high density PVC w/stainless steel

insert
Seating - fold away aft bench seat w/cushion Seating - port and starboard bow seating

w/forward facing fold away bolstered

backrest (2)
Seating - port & starboard fish box cushions Stereo system w/AM/FM tuner, MP3 auxiliary

audio connections/amplifier, Bluetooth(R), remote control & fold down storage; speakers - console forward (2), cockpit (2) & T-top (2)

Stern eyes - heavy-duty 316 stainless steel Storage nets
Transducer mounting flats
Transom door - fiberglass

Washdown - freshwater
Washdown - pressurized raw water w/hose (2) Water tank - 32-gallon (121.1 l) freshwater

Console

Accessory outlet - 12V
Accessory outlet - 5V duplex USB port Compass

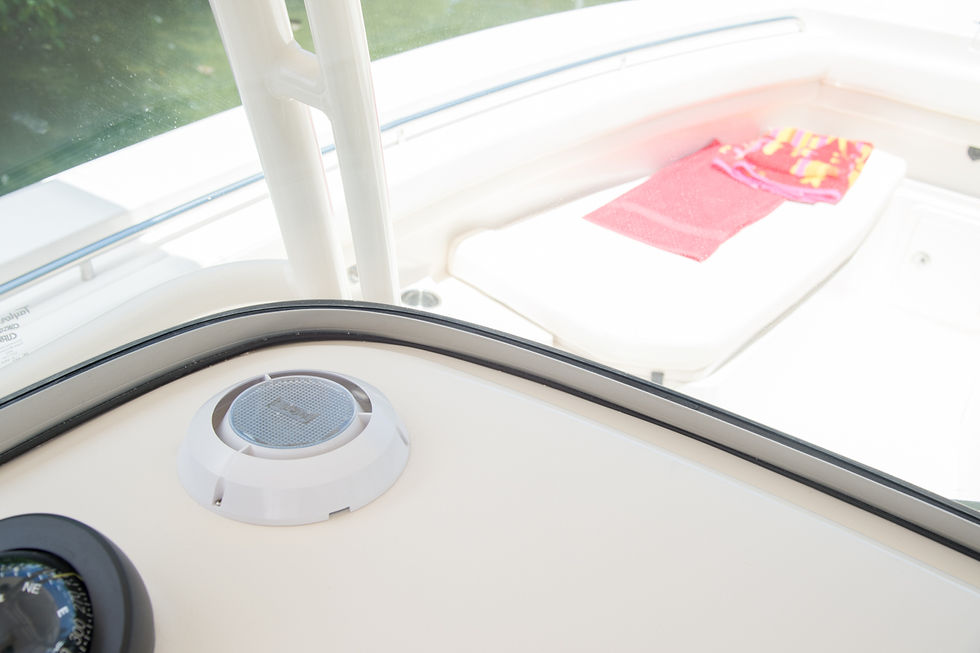

Console ventilator
Drink holders (3)
Factory engine pre-rigging
Flush mount electronics area

Head - lockable console w/lighting, shower, sink, bulk storage drawers, helm access door w/light, marine head w/electric flush (10-gallon) (38 l) & composite cherry and holly sole

Seating - molded forward console seat w/cushion

Steering - hydraulic tilt w/power assist (n/a with Yamaha Helm Master control)

Steering wheel - 316 grade stainless steel w/knob

Storage - lockable acrylic console door Storage - under footrest
T-top (fiberglass) w/painted aluminum frame,

integrated windshield, radio box, storage net, dome light, fore/aft spreader lights, rod holders (4), radar flat & outrigger plates

Window - tinted frameless acrylic
Windshield - scratch resistant acrylic windshield

integrated w/T-top Windshield wiper w/washer

Deluxe Lean Bar

Drink holders (2)
Footrests
Livewell - 47-gallon (177.9 l) insulated raw

water livewell w/light, full column distribution inlet & ob drain (1100 GPH pump) (4164 LPH)

Rigging station - freshwater sink w/pullout faucet & insulated bait box

Rod holders (4)
Seating - lean bar mounted Command Elite

horizontally adjustable contoured helm chairs w/deluxe cushioning & flip-up bolsters (2)

Storage - lockable bulk storage Storage - lockable tackle trays

Optional Features

Options

Bow thruster
Casting platform insert w/cushions
CE certification package
Convenience package - battery charger &

dockside power w/galvanic isolator Engine paint - Yamaha factory-painted

engine(s), pearlescent white (300 HP and

350 HP only)
Helm Master® w/Set PointTM - Yamaha Helm

Master® control system (requires

convenience package)
Hull color - Celestial Blue, Coastal Fog Blue,

Sand, Sea Glass or Seaport Blue gelcoat;

Cape Gray or Harbor Blue paint
Lighting - underwater blue LED (3)
Outrigger kit - 15-ft. (4.6 m) crank outriggers T-

top mounted
Outrigger kit - 15-ft. (4.6 m) radial T-top

mounted
Table - fiberglass bow table
T-top color - underside of fiberglass T-top

(requires matching gelcoat hull color option)

Canvas Options

T-top side wing curtains (ivory)
